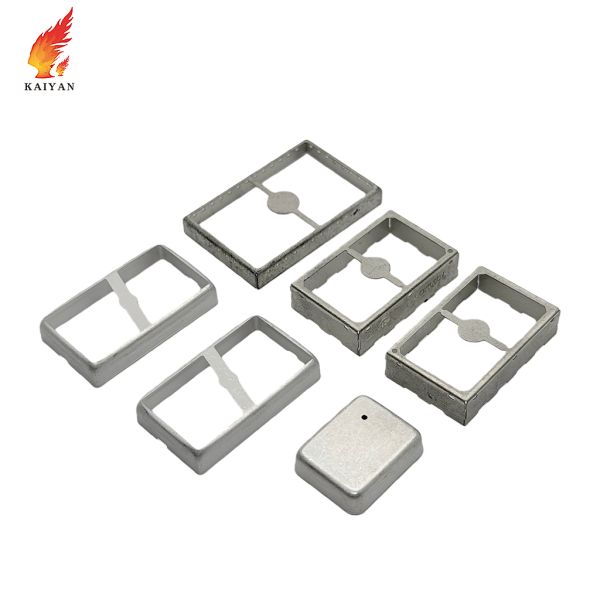

Tin Plated Deep Drawn RF Shield Can For Bluetooth And Wireless Modules

Name: Tin Plated Deep Drawn RF Shield Can For Bluetooth And Wireless Modules
Brand: KAIYAN
Price: 0.05 USD

Quality Tin Plated Deep Drawn RF Shield Can For Bluetooth And Wireless Modules for sale

Brand Name : KAIYAN

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10

Price : 0.05$-0.15$/piece

Payment Terms : T/T

Supply Ability : 600000pcs/month

Delivery Time : 8 work days

Packaging Details : Tape & Reel Packaging or Vacuum Formed Tray Packaging

Material : Nickel Silver(Customizable)

Surface Treatment : Tin plating

Tolerance : ±0.05 mm

Mounting : SMT Reflow Soldering

Flatness tolerance : ≤ 0.05 mm

Application : Mobile devices WiFi / BT / GPS modules

Contact Now

Tin Plated Deep Drawn RF Shield Can For Bluetooth And Wireless Modules

Our tin plated deep drawn RF shield cans are engineered to provide stable and effective EMI / RFI shielding for Bluetooth and wireless modules used in compact and high-frequency electronic designs. The deep drawing process forms a seamless metal structure, significantly reducing electromagnetic leakage and helping maintain reliable signal integrity in sensitive RF circuits.

The tin-plated surface offers excellent solderability and low contact resistance, ensuring secure grounding and strong mechanical attachment during SMT reflow soldering. This makes the shield cans fully compatible with automated pick-and-place assembly, improving production consistency and yield.

With controlled wall thickness, good flatness, and high dimensional accuracy, these RF shield cans are well suited for high-density PCB layouts commonly found in Bluetooth audio devices, IoT products, and wireless communication equipment. Durable materials and stable manufacturing processes ensure long-term performance in both prototype builds and mass production.

Specification Item	Description
Product Name	RF Shield Can / EMI Shielding Cover
Material	Nickel Silver (CuNiZn Alloy)
Thickness	0.20 mm / 0.25 mm / 0.30 mm (customizable)
Dimensions	Customized according to PCB layout
Tolerance	±0.05 mm (standard)
RoHS Compliance	Yes
OEM / ODM Service	Supported
Applications	Mobile Devices, RF Modules, Wireless Communication, Automotive Electronics

Our Advantages

Fast Prototyping with Short Lead Time

In-house tooling and stamping capability
Rapid sample turnaround for design validation
Short development cycle to accelerate time-to-market

Low Tooling Cost for New Project Development

Optimized tool design to minimize initial investment
Cost-efficint solutions for low to medium volume projects
Ideal for R&D, pilot runs, and early-stage product development

Stable Mass Production with Consistent Quality

Process-controlled production for high-volume orders
Strict quality inspection throughout manufacturing stages
Consistent dimensions and performance from batch to batch

Precision Stamping & Forming for Tight Tolerances

High-precision stamping and forming processes
Capability to maintain tight dimensional tolerances
Suitable for complex geometries and compact PCB layouts

OEM & ODM Services Supported

Custom designs based on drawings or samples
Engineering support from concept to production
Flexible manufacturing solutions tailored to customer needs

Applications

Consumer Electronics – Smartphones, wearables, smart devices
Wireless Communication – RF modules, Wi-Fi, Bluetooth, GPS systems
Automotive Electronics – Infotainment, ADAS, EV electronic modules
Industrial Electronics – Control systems, automation equipment
Medical Electronics – Diagnostic and monitoring devices
IoT & Smart Systems – Connected devices and smart applications

FAQ

What does KAIYAN Hardware manufacture?
Precision metal stamping parts, including RF shield cans, EMI shielding components, brackets, terminals, and custom metal parts.
Do you support custom designs?
Yes. OEM & ODM customization is available based on customer drawings or samples.
How fast is prototyping?
Prototype samples are typically delivered within 7–15 days, depending on part complexity.
Is tooling cost competitive?
Yes. Optimized tooling design helps keep tooling costs low, ideal for new project development.
Can you support mass production with stable quality?
Yes. We offer stable mass production with consistent quality control and reliable delivery.

KAIYAN Hardware provides reliable metal stamping solutions with fast prototyping, low tooling cost, and consistent quality from prototype to mass production.
